| HPL Series |
|
|
we have achieved near point-light source through dividing the filament into 4-segments and 6-segmengs,and arranging them in a 3-dimentional position.
Through combination with fixture,save 40-50% electricity.
Heat sink allowed the possibility of its application towards realizing high-power light source and long life.
Metal allow bases tend to degrade in insulation resistance properties over the life of the lamp.
The new ceramic heat sink base maintains it is resistance to electric conductivity over the life of the lamp. |
|
| |
|
Type |
Performance |
Unit(mm) |
Filament |
Base |
Socke |

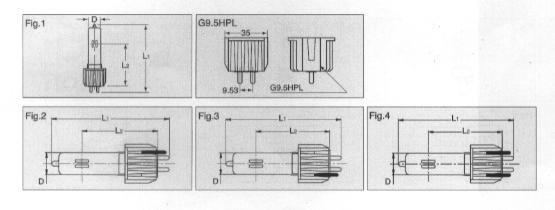

FIG |
Note |
Price |
Voltage |
Wattage |
Luminous |
Color temp |
Life |
L2 |
L1 Max. |
D Max. |
HPL100V-300WB |
100 |
300 |
6,300 |
3,050 |
1,000 |
60.3 |
104 |
19 |
4-C8 |
G9.5HPL |
|
1 |
|
|
HPL100V-575WB |
100 |
575 |
13,200 |
3,050 |
1,000 |
60.3 |
104 |
19 |
4-C8 |
G9.5HPL |
|
1 |
|
|
HPL100V-575WC |
100 |
575 |
16,520 |
3,200 |
300 |
60.3 |
104 |
19 |
4-C8 |
G9.5HPL |
|
1 |
|
|
HPL100V-650WB |
100 |
650 |
15,300 |
3,050 |
1,000 |
60.3 |
104 |
19 |
4-C8 |
G9.5HPL |
|
1 |
|
|
HPL100V-650WC |
100 |
650 |
17,550 |
3,250 |
300 |
60.3 |
104 |
19 |
4-C8 |
G9.5HPL |
|
1 |
|
|
HPL100V-750WB |
100 |
750 |
17,600 |
3,050 |
1,000 |
60.3 |
104 |
19 |
4-C8 |
G9.5HPL |
|
2 |
|
|
HPL100V-750WC |
100 |
750 |
20,250 |
3,200 |
300 |
60.3 |
104 |
19 |
4-C8 |
G9.5HPL |
|
2 |
|
|
HPL115V-375WC |
115 |
375 |
10,540 |
3,250 |
300 |
60.3 |
104 |
19 |
4-C8 |
G9.5HPL |
|
1 |
|
|
HPL115V-375WX |
115 |
375 |
8,000 |
3,050 |
1,000 |
60.3 |
104 |
19 |
4-C8 |
G9.5HPL |
|
1 |
|
|
HPL115V-575WC |
115 |
575 |
16,520 |
3,250 |
300 |
60.3 |
104 |
19 |
4-C8 |
G9.5HPL |
|
1 |
|
|
HPL115V-575WX |
115 |
575 |
12,360 |
3,050 |
2,000 |
60.3 |
104 |
19 |
4-C8 |
G9.5HPL |
|
1 |
|
|
HPL115V-750WC |
115 |
750 |
21,900 |
3,250 |
300 |
60.3 |
104 |
19 |
4-C8 |
G9.5HPL |
|
2 |
|
|
HPL115V-750WX |
115 |
750 |
16,400 |
3,050 |
1,500 |
60.3 |
104 |
19 |
4-C8 |
G9.5HPL |
|
2 |
|
|
HPL120V-575WC |
120 |
575 |
16,520 |
3,250 |
300 |
60.6 |
104 |
19 |
4-C8 |
G9.5HPL |
|
1 |
|
|
HPL120V-575WX |
120 |
575 |
12,360 |
3,050 |
2,000 |
60.3 |
104 |
19 |
4-C8 |
G9.5HPL |
|
1 |
|
|
HPL120V-750WC |
120 |
750 |
21,900 |
3,250 |
300 |
60.3 |
104 |
19 |
4-C8 |
G9.5HPL |
|
2 |
|
|
HPL220V-575WCN |
220 |
575 |
14,900 |
3,200 |
400 |
60.3 |
104 |
19 |
6-C8 |
G9.5HPL |
|
1 |
|
|
HPL220V-750WCN |
220 |
750 |
19,750 |
3,200 |
400 |
60.3 |
104 |
19 |
6-C8 |
G9.5HPL |
|
2 |
|
|
HPL230V-375WXN |
230 |
375 |
7,250 |
3,000 |
1,000 |
60.3 |
104 |
19 |
6-C8 |
G9.5HPL |
|
1 |
|
|
HPL230V-575WCN |
230 |
575 |
14,900 |
3,200 |
400 |
60.3 |
104 |
19 |
6-C8 |
G9.5HPL |
|
1 |
|
|
HPL230V-575WXN |
230 |
575 |
11,780 |
3,050 |
1,500 |
60.3 |
104 |
19 |
6-C8 |
G9.5HPL |
|
1 |
|
|
HPL230V-750WCN |
230 |
750 |
19,750 |
3.200 |
300 |
60.3 |
104 |
19 |
6-C8 |
G9.5HPL |
|
2 |
|
|
HPL230V-750WXN |
230 |
750 |
15,600 |
3,050 |
1,500 |
60.3 |
104 |
19 |
6-C8 |
G9.5HPL |
|
2 |
|
|
HPL240V-375WXN |
240 |
375 |
7,250 |
3,000 |
1,000 |
60.3 |
104 |
19 |
6-C8 |
G9.5HPL |
|
1 |
|
|
HPL240V-575WCN |
240 |
575 |
14,000 |
3,200 |
400 |
60.3 |
104 |
19 |
6-C8 |
G9.5HPL |
|
1 |
|
|
HPL240V-575WXN |
240 |
575 |
11,780 |
3,050 |
1,500 |
60.3 |
104 |
19 |
6-C8 |
G9.5HPL |
|
1 |
|
|
HPL240V-750WCN |
240 |
750 |
19,750 |
3,200 |
300 |
60.3 |
104 |
19 |
6-C8 |
G9.5HPL |
|
2 |
|
|
HPL240V-750WXN |
240 |
750 |
15,600 |
3,050 |
1,500 |
60.3 |
104 |
19 |
6-C8 |
G9.5HPL |
|
2 |
|
|
HPL77V-550WC |
77 |
550 |
16,170 |
3,250 |
300 |
60.3 |
104 |
19 |
4-C8 |
G9.5HPL |
|
3 |
|
|
HPL77V-550WX |
77 |
550 |
12,160 |
3,050 |
2,000 |
60.3 |
104 |
19 |
4-C8 |
G9.5HPL |
|
3 |
|
|
HPL77V-750WC |
77 |
750 |
22,950 |
3,250 |
300 |
60.3 |
104 |
19 |
4-C8 |
G9.5HPL |
|
4 |
|
|
|
| |
| |
|
| |
|
|
|
|
|
